Lighting

Define lighting screen settings.

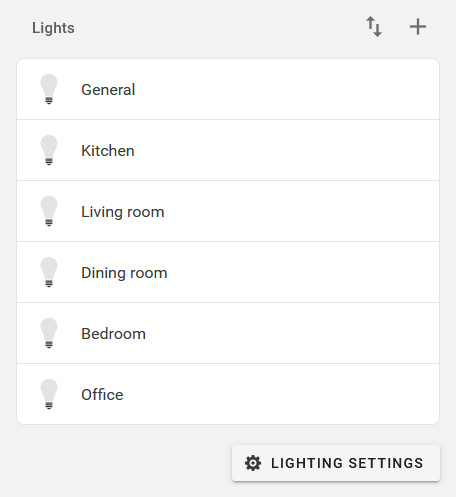

Lights

Define the lights that appear on the lighting screen. Each light can be duplicated or deleted by right-clicking on it.

Lights

The lights have several settings:

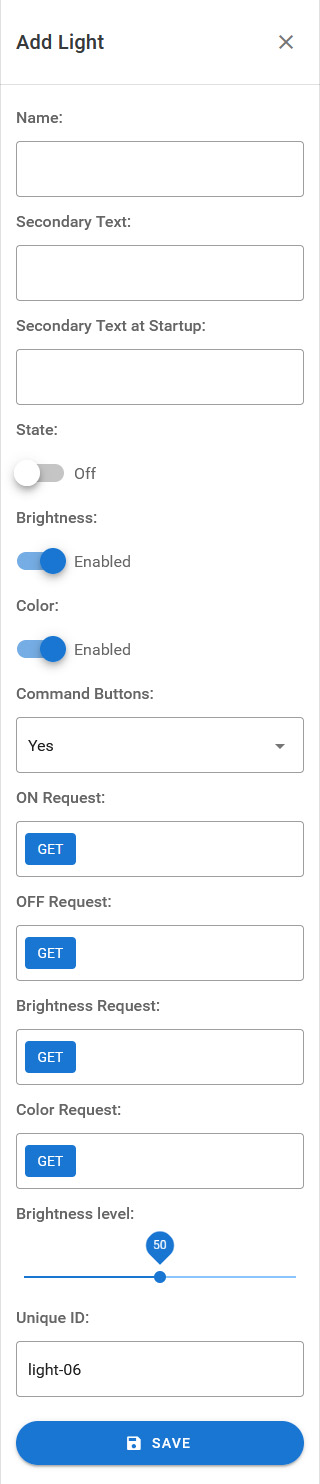

Light Settings

Name

Name of the light.

Secondary Text

Secondary text displayed below the light name.

Secondary Text at startup

Secondary text value applied at startup.

State

Light status: On or Off.

Brightness

Enables or disables the ability to control the brightness of the light.

Color

Enables or disables the ability to control the color of the light.

Command Buttons

Sets whether buttons are displayed or not.

ON Request

HTTP request to turn ON the light. The Command Buttons option must be set to Yes or ON only.

OFF Request

HTTP request to turn off the light. The Command Buttons option must be set to Yes or OFF only.

Brightness Request

HTTP request to change the brightness. The Brightness option must be enabled.

The ^^ characters will be replaced by the percentage value set on the screen. (In the URL, Content Type and POST Data)

Color Request

HTTP request to change the color. The Color option must be enabled.

The characters below will be replaced by the color values ​​defined on the screen. (In URL, Content Type and POST Data)

^rgb^ : Value in RGB 565 format
^hex^ : Value in Hexadecimal format
^r^ : Red value in RGB 888 format
^g^ : Green value in RGB 888 format
^b^ : Blue value in RGB 888 format
^x^ : X value in CIE color format
^y^ : Y value in CIE color format
^z^ : Z value in CIE color format
^h^ : H value in HSV format
^s^ : S value in HSV format
^v^ : V value in HSV format

Brightness level

Current brightness value. The Brightness option must be enabled.

Unique ID

Unique identifier used to identify the light in third-party applications. If the unique identifier is changed, the settings of third-party applications will also need to be changed.

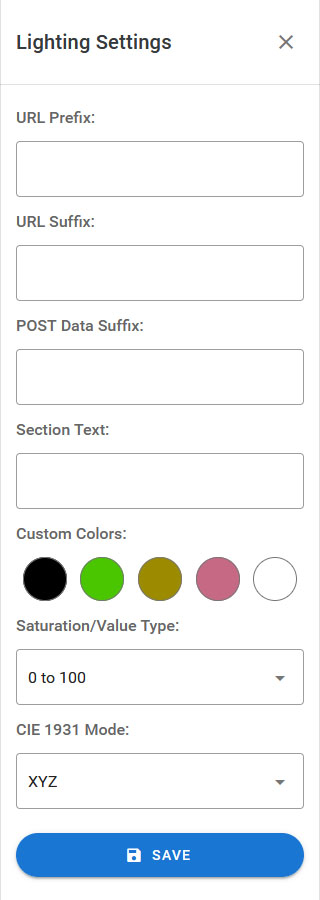

Lighting Settings

Define the general settings for the lighting screen.

Lighting Settings

URL Prefix

Text added before the url for all request defined for the lighting screen.

URL Suffix

Text added after the url for all request defined for the lighting screen.

POST Data Suffix

Text added after POST data for all requests defined for the lighting screen.

Section Text

Text displayed on the bottom bar.

Custom Colors

Preset custom colors displayed on the color selection screen.

Saturation/Value Type

Type saturation and value for HSV color values.

CIE 1931 Mode

Color mode for CIE 1931 type (XYZ).
