Heating

Define the heating screen parameters.

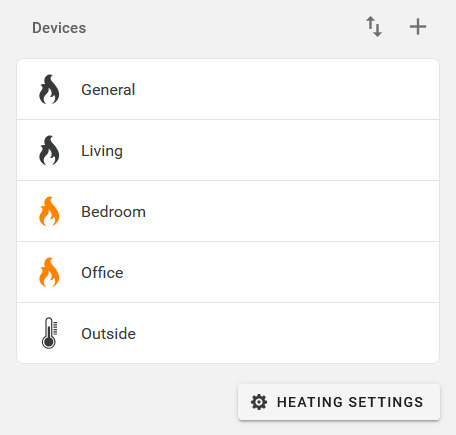

Devices

Define which devices appear on the heating screen. Each device can be duplicated or deleted by right-clicking on it.

Devices

Device have several parameters:

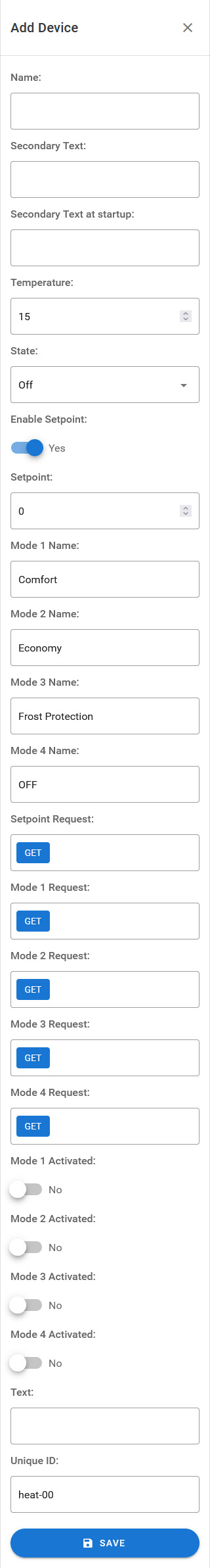

Device Settings

If no mode is defined and the setpoint is disabled, the icon displayed will be a thermometer otherwise the icon will reflect the defined state.

Name

Name of the device.

Secondary Text

Secondary text displayed below the device name.

Secondary Text at startup

Secondary text value applied at startup.

Temperature

Current temperature of the device. If the temperature is lower than -273 it will not be displayed.

State

État de l'appareil :

  • Off
  • Comfort
  • Economy
  • Frost Protection
  • Cold

The status icon will only be displayed if at least one mode is set or the setpoint is enabled. Otherwise a thermometer will be displayed.

Enable Setpoint

Enables or disables the ability to set a setpoint temperature.

Setpoint

Setpoint temperature set. The Enable Setpoint option must be set to Yes.

Mode 1 Name

Mode name 1. If the name is empty, the mode will be disabled.

Mode 2 Name

Mode name 2. If the name is empty, the mode will be disabled.

Mode 3 Name

Mode name 3. If the name is empty, the mode will be disabled.

Mode 4 Name

Mode name 4. If the name is empty, the mode will be disabled.

Setpoint Request

HTTP request to modify the setpoint. The Enable Setpoint option must be set to Yes.

The ^^ characters will be replaced by the setpoint value set on the screen. (In the URL, Content Type and POST Data)

Mode 1 Request

HTTP request when the mode 1 button is pressed. The mode 1 name must not be empty for the button to be displayed.

Mode 2 Request

HTTP request when the mode 2 button is pressed. The mode 1 name must not be empty for the button to be displayed.

Mode 3 Request

HTTP request when the mode 3 button is pressed. The mode 1 name must not be empty for the button to be displayed.

Mode 4 Request

HTTP request when the mode 4 button is pressed. The mode 1 name must not be empty for the button to be displayed.

Mode 1 Activated

Current state of mode 1. Mode 1 name must not be empty for the button to appear.

Mode 2 Activated

Current state of mode 2. Mode 2 name must not be empty for the button to appear.

Mode 3 Activated

Current state of mode 3. Mode 3 name must not be empty for the button to appear.

Mode 4 Activated

Current state of mode 4. Mode 4 name must not be empty for the button to appear.

Text

Text displayed on the bottom bar on the device control screen.

Unique ID

Unique identifier used to identify the device in third-party applications. If the unique identifier is changed, the settings of third-party applications will also need to be changed.

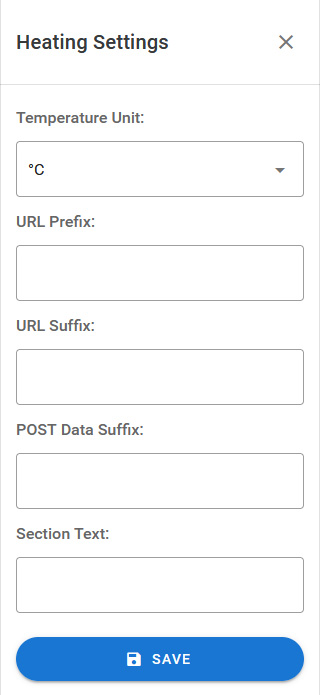

Heating Settings

Define general parameters for the heating screen.

Heating Settings

Temperature Unit

Temperature unit displayed next to the current and set temperatures: °C or °F. (No conversion will be performed)

URL Prefix

Text added before the url for all request defined for the heating screen.

URL Suffix

Text added after the url for all request defined for the heating screen.

POST Data Suffix

Text added after POST data for all requests defined for the heating screen.

Section Text

Text displayed on the bottom bar.
