Actions

Define the actions screen parameters.

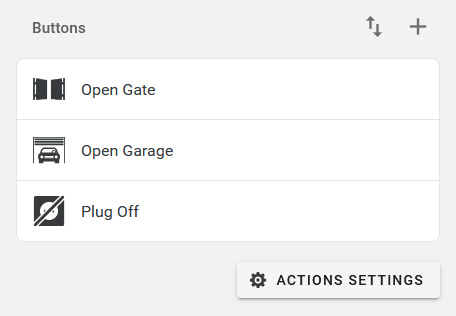

Buttons

Define which buttons appear on the actions screen. Each button can be duplicated or deleted by right-clicking on it.

Buttons

Button have several parameters:

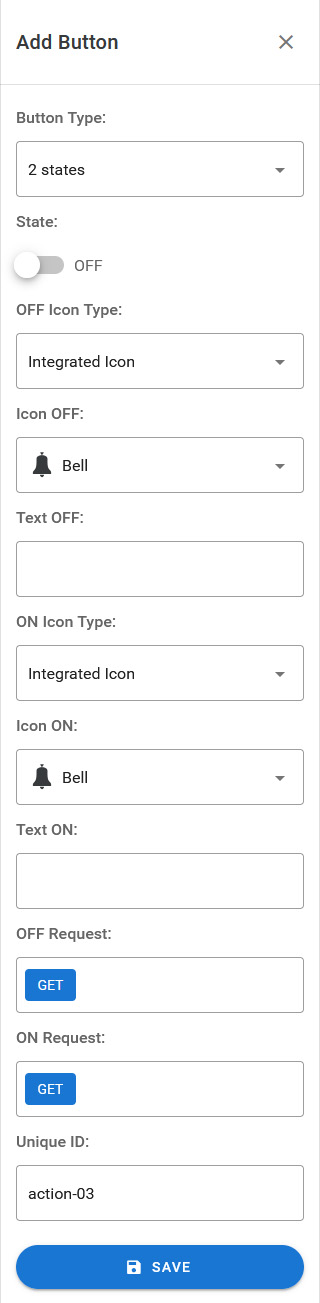

Button Settings

Button Type

Sélection du type de bouton :

  • 1 State
  • 2 States
  • 2 States auto change : the button state will change with each press

State

Button state: On or Off. (Only for 2 states and 2 states auto change type buttons)

OFF Icon Type

OFF Icon type selection: Integrated Custom Icon or Micro SD custom icon.

Icon OFF

Selecting the OFF icon, the icon will be displayed all the time for 1 State type buttons. For 2 states and 2 states auto change type buttons, the icon will be displayed when the button state is Off. The resolution of the icons must be 52 x 52 pixels and be in PNG or JPG format.

Text OFF

Button text value, the text will be displayed all the time for 1 state type buttons. For 2 states and 2 states auto change type buttons, the text will be displayed when the button state is Off.

ON Icon Type

ON Icon type selection : Integrated Custom Icon or Micro SD custom icon.

Icon ON

Selecting the ON icon, the icon will be displayed when the button state is On. Only for 2 states and 2 states auto change type buttons. The resolution of the icons must be 52 x 52 pixels and be in PNG or JPG format.

Text ON

Button text value to ON, the text will be displayed when the button state is On. Only for 2 states and 2 states auto change type buttons.

OFF Request

HTTP request to execute when the button is pressed. Only for 1 state buttons and when the button state is Off for 2 state and 2 state auto change type buttons.

ON Request

HTTP request to execute when the button is pressed. Only for 2-state and 2-state auto-change buttons and when the button state is On.

Unique ID

Unique identifier used to identify the button pressed in third-party applications. If the unique identifier is changed, the settings of third-party applications will also need to be changed.

Paramètres actions

Define general parameters for the actions screen.

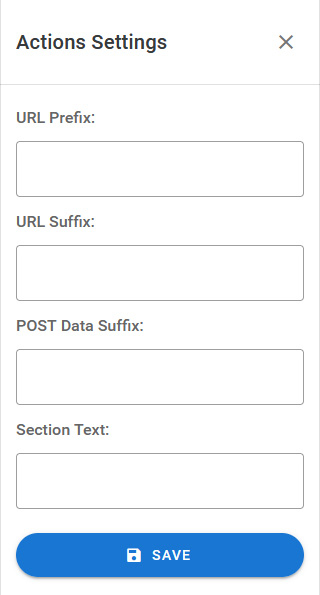

Paramètres Actions

URL Prefix

Text added before the url for all request defined for the actions screen.

URL Suffix

Text added after the url for all request defined for the actions screen.

POST Data Suffix

Text added after POST data for all requests defined for the actions screen.

Section Text

Text displayed on the bottom bar.
